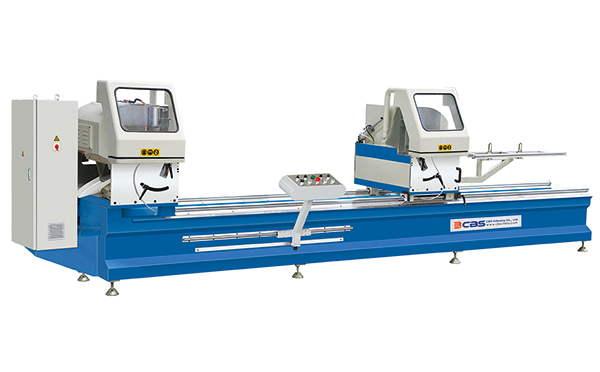

CDM-5042 Aluminium Profiles Precision Double Mitre Cutting Machine

Published by:CBS Industry Co Ltd
aluminium-cutting-saw

Features and functions:
1.   It has feature of easy operation, reliable performance, advanced technique and convenient maintenance.
2.   The profile cutting size adopts the digital display technique to ensure high efficiency and accuracy(optional).
3.   Imported carbide saw blade gives accurate processing and high efficiency.
4.   Two cutting heads can work together or single, when together work, one time can cut off the required length and angle.
5.   It's an high efficiency cutting machine for aluminium window and door profiles, industry aluminum profiles and curtain wall aluminium profiles, aluminum ladder profiles etc..

Technical parameter:
Power supply                                 380V 50Hz
Saw motor power                          2x2.2Kw
Rotary Speed                                  2800r/min
Air pressure                                    0.5-0.8Mpa
Air consumption                             60L/m
Cutting length                                max 4200mm min 400mm
Cutting width                                    max 135mm
Cutting height                                  max 300mm 45°    max 200mm 90°
Cutting angle                                     90°, 45°,67.5°(optional)
Cutting speed                                 stepless
speed regulation                           0-0.3m/min
Blade specification                         Φ500XΦ30X4.4 Z=120
Repeat locating length                    <=0.2mm
Cutting profile surface plane          <=0.1mm
Cutting angle tolerance                   ±0.5′
Cutting profile surface roughness                Ra 12.5μm
Overall dimension                                            5500X1750X1950mm
