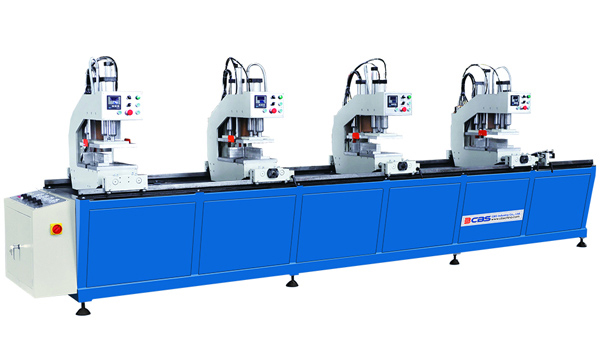

WMC-412 uPVC Window & Door Four-head Welding Machine

Published by:CBS Industry Co Ltd
upvc-window-making-machine

Features and functions:

1. The machine is made up of 4 welding heads, machine frame, electric control tank & material supporting fame etc.
2. The left machine head has horizontal moving mechanism, and can move 20mm along the track.
3. The fixing mechanism, pressing mechanism, heating mechanism & head box etc. on each machine head.
4. The machine is used for PVC window and door welding processing, it can achieve the whole welding processing individually.
5. It features advanced technology, reliable function, and easy operation.
6. It adopts PLC control, pneumatic driving and locating.
7.The movable stand adopts non-oil lubricating bearing and linear ball bearing that make it of high precision, easy operation, and convenient maintenance.
8. The right head can be used for small variable angles welding.
9. The 4 machine heads can be used individually, simultaneously or combinative.

Technical parameter:

Input voltage frequency 220V 50Hz
Input power 4.5kW
Working air pressure 0.5-0.8MPa
Air consumption 200 L/ min
Welding height 20~100mm
Max welding width 120mm
Welding size 400~3500mm
Dimension 5500 x 1000 x 1700mm



WMC-412 uPVC window and door four-head welding machine video.




uPVC window making machine - how to make v-welding video





upvc window machine - variable angle and reverse welding video
