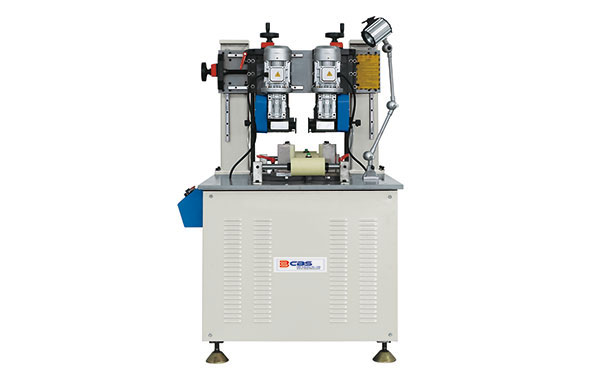

TBK(A)-3525 Thermal Break Aluminum Profile Knurling (and Assembling) Machine

Published by:CBS Industry Co Ltd
thermal-break-aluminium-profile-machine


Features and functions:
  1. The machine is mainly for thermal break aluminum profiles knurling and assembly.
  2. The machine rolls the aluminum profile on the inner side and make the teeth to increase the  friction of the finished thermal break aluminum profiles.
  3. It equipped with automatic pneumatic clamps, the device can realize the "work of wearing the strip while opening the teeth".
  4. The machine adopt AC frequency conversion to make the speed adjustable.
  5. The transmission mode, drive motor + aluminum alloy casting worm gear reducer + spindle box to drive the gear cutter to achieve precise teeth opening; imported linear ball guide, frequency converter, reducer.
  6. It can realize fully automatic open-tooth wear-through operation.


Technical parameter:
Power supply 380V/50Hz
Total power 1.35Kw
Knurling wheel diameter 80mm
Air pressure supplied 0.6-0.8Mpa
Knurling speed 0-100m/min
Max knurled profile section 250x350mm(WxH)
Overall dimension 1260x930x1580mm(LxWxH)
Weight 800Kg
