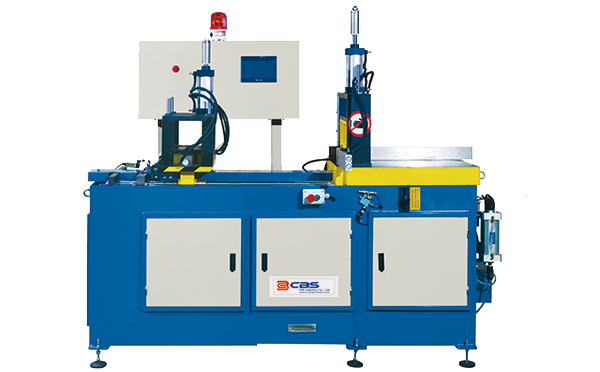

CSA-45C CNC Automatic Profiles Cutting Machine

Published by:CBS Industry Co Ltd
automatic-aluminium-profile-cutting-machine

Features and functions:

1. Used for aluminium profiles continuous cutting, it's a full automatic cutting machine.

2. Imported carbide saw blade is accuracy and high efficiency.

3. Input the cutting sizes and quantity through the touch screen, then machine will automatically feeding, cutting and counting.

4. High-power motor makes the cutting easily for heavy profiles.

5. The PLC controller and auto-feeding system with high efficiency is suitable for large volume production.

6. The saw blade feed from bottom to top that features fast and precise cutting. It’s widely used for all kinds of industry aluminium profiles cutting.



Technical parameter:

Power supply

415/380V, 50HZ

Cutting motor power

5.5 KW

Motor rotary speed

3200r/min

Operation air pressure

0.6-0.8Mpa

Auto-feeding length

5-650mm

Saw blade feeding speed

0~3m/min

Saw Blade Diameter

Φ450 x Φ25.4

Cutting angle

90 degree

Overall dimensions

2300x1000x1700mm


CSA-45C CNC Automatic Aluminium Profiles Cutting Machine demo
